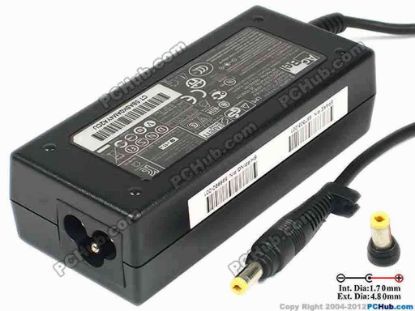

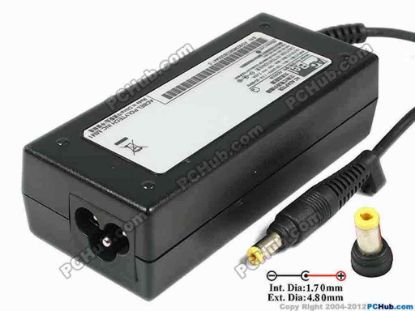

Liteon Model: PA-1500-04
INPUT: 100-240V~ 1.5A, 50-60Hz
OUTPUT: 19V 2.64A 50W
Connecter size: Int. Diameter: 1.70mm
Ext. Diameter: 4.80mm
Length : 11.00mm
Dimension: 108 x 45 x 30 mm
*When buying any compatible AC adapter, please take note the type of power cord(2 or 3-prong) used.
**Please take note, 2 wire AC power cord not included.
INPUT: 100-240V~ 1.6A, 50-60Hz
OUTPUT: 18.5V 3.5A 65W
Connecter size: Int. Diameter: 2.50mm
Ext. Diameter: 5.50mm
Length : 12.00mm
Dimension: 105 x 46 x 28 mm
*When buying any compatible AC adapter, please take note the type of power cord(2 or 3-prong) used.
**Please take note, 3 wire AC power cord not included.

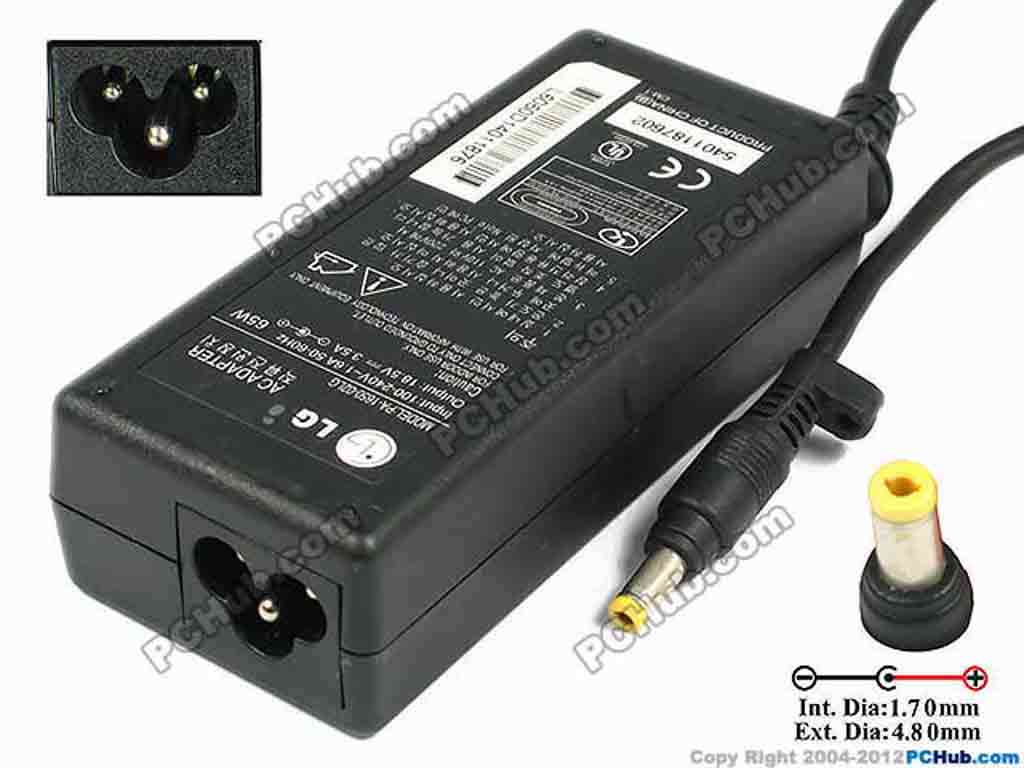

AC Adapter Model: PA-1650-01
LG P/N: 6708BA0072A
Input : 100-240V~ 1.6A, 50-60Hz
Output : 18.5V 3.5A 65W
Connecter size: Int. Diameter: 1.70mm
Ext. Diameter: 4.80mm
Length : 10.00mm
Dimensions: 105 x 45 x 28 mm
*Please check carefully and do not mix up with another adapter with the same model but different Voltage, Ampere and Connector size(Tip).
**Please take note, 2 wire AC power cord not included.
Liteon Model: PA-1900-08
INPUT: 100-240V~ 1.5A, 50-60Hz
OUTPUT: 19V4.74A 90W
Connecter size: Int. Diameter: 4.30mm
Ext. Diameter: 6.50mm
Length : 10.00mm
Dimension: 127 x 50 x 30 mm
**Please take note, 3 wire AC power cord not included.
Liteon Model: PA-1900-08
INPUT: 100-240V~ 1.5A, 50-60Hz
OUTPUT: 19V 4.74A 90W
Connecter size: Int. Diameter: 1.70mm
Ext. Diameter: 4.80mm
Length : 10.00mm
Dimension: 127 x 50 x 30 mm
**Please take note, 3 wire AC power cord not included.
*2-pin US Plug
AC Adapter Model: PSCV360104A
INPUT: 100-240V~ 1.0-0.5A, 50-60Hz
OUTPUT: 12V 3A 36W
Connector Size: Int. Diameter: 4.50mm
Ext. Diameter: 6.50mm
Pin in the Middle
Dimensions: 120 x 62 x 34 mm
*Please take note, 3-wire (IEC C13) AC power cord not included.
Model: LCAP07F
INPUT: 100-240V~ 1.0 A(1.0A), 50-60Hz
OUTPUT: 12V 3.0A 36W
Connecter size: Int. Diameter: 4.50mm
Ext. Diameter: 6.00mm
Pin Thickness : 1.00mm
Dimension: 116 x 48 x 34 mm
*Please take note, 3-wire (IEC C13) AC power cord not included.
