AC Adapter 13V-19V

HP f4600a, f4814a
Compatible Part Number: f4814a, ADP-75FB B, F4600-60901, 0950-4359, 0950-4334.

Model: PA-1750-01 (Lite-On)
INPUT: 100-240V~ 2.3A 50-60Hz

Model: ADP-75FB (Delta)
INPUT: 100-240V~ 1.5A 50-60Hz
OUTPUT: 19V 3.95A 75W
Connecter size: Int. Diameter:  2.50mm
                             Ext. Diameter:  5.50mm
                             Length          : 12.00mm

Dimensions: 126 x 50 x 28 mm

*AC/DC Adapter with Power Factor Correction (PFC).

**Please take note, 2 wire AC power cord not included.

HP f4600a, f4814a
Compatible Part Number: f4814a, ADP-75FB B, F4600-60901, 0950-4359, 0950-4334.

Model: PA-1750-01 (Lite-On)
INPUT: 100-240V~ 2.3A 50-60Hz

Model: ADP-75FB (Delta)
INPUT: 100-240V~ 1.5A 50-60Hz
OUTPUT: 19V 3.95A 75W
Connecter size: Int. Diameter:  2.50mm
                             Ext. Diameter:  5.50mm
                             Length          : 12.00mm

Dimensions: 126 x 50 x 28 mm

*AC/DC Adapter with Power Factor Correction (PFC).

**Please take note, 2 wire AC power cord not included.

HP f4600a, f4814a
Compatible Part Number: f4814a, ADP-75FB B, F4600-60901, 0950-4359, 0950-4334.

Model: PA-1750-01 (Lite-On)
INPUT: 100-240V~ 2.3A 50-60Hz

Model: ADP-75FB (Delta)
INPUT: 100-240V~ 1.5A 50-60Hz

OUTPUT: 19V 3.95A 75W
Connecter size: Int. Diameter:  2.50mm
                             Ext. Diameter:  5.50mm
                             Length          : 12.00mm

Dimension: 126 x 50 x 28 mm

*AC/DC Adapter with Power Factor Correction (PFC).

**Please take note, 2 wire AC power cord not included.

HP f4600a, f4814a
Compatible Part Number: f4814a, ADP-75FB B, F4600-60901, 0950-4359, 0950-4334.

Model: PA-1750-01 (Lite-On)
INPUT: 100-240V~ 2.3A 50-60Hz

Model: ADP-75FB (Delta)
INPUT: 100-240V~ 1.5A 50-60Hz

OUTPUT: 19V 3.95A 75W
Connecter size: Int. Diameter:  2.50mm
                             Ext. Diameter:  5.50mm
                             Length          : 12.00mm

Dimension: 126 x 50 x 28 mm

*AC/DC Adapter with Power Factor Correction (PFC).

**Please take note, 2 wire AC power cord not included.

By Lite-On
Model: PA-1131-08H
AC Adapter Series: HSTNN-LA01
Compaq Part No.: 345312-001

Model: PA-1131-08R
AC Adapter Series: HSTNN-LA01
Compaq Part No.: 394901-001

By Hipro
Model: HP-OW135F13
AC Adapter Series: HSTNN-HA01
Compaq Part No.: 345312-002

By Fordgood Electronic
Model: 0317A19135
AC Adapter Series: HSTNN-SA01
Compaq Part No.: 345312-003

Replace with Compaq Spare: 346958-001

* PLEASE NOTE : 346958-001 has been replaced by 361072-001 *

INPUT: 100-240V~ 2.2A, 50-60Hz
OUTPUT: 19V 7.1A 135W
Connecter size: Int. Diameter:   2.50mm
                       Ext. Diameter:   5.50mm
                       Length          : 13.00mm

Dimensions: 170 x 75 x 38 mm

*For use with Compaq and HP notebook products only.

**Please take note, 3 wire AC power cord not included.

DC688A/DR911A

By Delta Electronics
ADP-180EB B
Model: HSTNN-DA03
HP P/N: 393948-004 , 344500-004

By HIPRO
HP-OW135F13ID LF
Model: HSTNN-HA01
HP P/N: 393953-002

By Li Shin
0415B19180
Model: HSTNN-SA01
HP P/N: 344500-003 , 366165-001

Replace with HP Spare: 394902-001 , 394903-001 , 374743-001

INPUT: 100-240V~ 2.9A, 50-60Hz
OUTPUT: 19V 9.5A 180W
Connecter: Multi pin

Dimension: 170 x 83 x 40 mm

*With power factor correction (PFC ) technology.

**Please take note, 3 wire (IEC C14) AC power cord not included.

AC Adapter Model: SDD020-n325
P/N: C4504-61221

Input: 100-220V, 47-63Hz, 1.2A
Output: 20V 3.25A 65W
Connecter size: Int. Diameter: 2.50mm
                Ext. Diameter: 5.50mm
                Lenght       : 12.0mm

Dimension: 114 x 47 x 32 mm

*Please take note, 3 wire IEC C13 AC power cord not included.

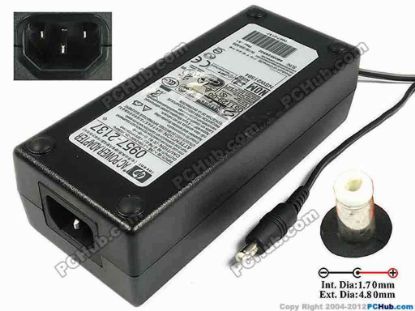

By LITEON
AC Adapter Model: PA1750-15HA-ROHS

INPUT: 100-240V~ 2A, 50-60Hz

OUTPUT: 32V 2340mA 75W
Connecter size: Int. Diameter: 1.70mm
Ext. Diameter: 4.80mm

Dimension: 150 x 66 x 43 mm
