Delta Electronics

Model: ADP-90SB AB

INPUT: 100-240V~ 1.5A, 50-60Hz
OUTPUT: 19V 4.74A 90W
Connecter size: Int. Diameter: 2.50mm
                       Ext. Diameter: 5.50mm

Dimension: 130 x 55 x 30 mm

*When buying any compatible AC adapter, please take note the type of power cord(2 or 3-prong) used.

**Please take note, 2 wire AC power cord not included.

Model: ADP-90SB AD

INPUT: 100-240V~ 1.5A, 50-60Hz
OUTPUT: 20V 4.5A 90W
Connecter size: Int. Diameter:  1.70mm
                       Ext. Diameter:  5.50mm


Dimension: 133 x 58 x 30 mm

*Please check carefully and do not mix up with another adapter with the same model but different Voltage, Ampere and Connector size(Tip).

**When buying any compatible AC adapter, please take note the type of power cord(2 or 3-prong) used.

***Please take note, 2 wire AC power cord not included.

Model: ADP-90SB AD

INPUT: 100-240V~ 1.5A, 50-60Hz
OUTPUT: 20V 4.5A 90W
Connecter size: Int. Diameter:  2.50mm
                       Ext. Diameter:  5.50mm
                       Length           : 12.00mm

Dimension: 133 x 58 x 30 mm

*Please check carefully and do not mix up with another adapter with the same model but different Voltage, Ampere and Connector size(Tip).

**When buying any compatible AC adapter, please take note the type of power cord(2 or 3-prong) used.

***Please take note, 2 wire AC power cord not included.

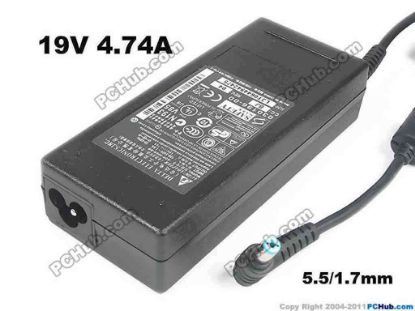

Model: ADP-90SB BB
Acer P/N: AP.09001.002(AP09001002), AP.09001.003 (AP09001003), AP.09001.004 (AP09001004), AP.09001.005 (AP09001005), AP.09001.010 (AP09001010), AP.09001.012 (AP09001012), AP.09001.013 (AP09001013), AP.09001.023 (AP09001023)

INPUT: 100-240V~ 1.5A, 50-60Hz
OUTPUT: 19V 4.74A 90W
Connecter size: Int. Diameter: 1.70mm
                       Ext. Diameter: 5.50mm

Dimensions: 130 x 55 x 30 mm

*Please do not mix up with another adapter with the same model number but different connector size, please check carefully the connector's measurement  of your adapter.

**When buying any compatible AC adapter, please take note the type of power cord(2 or 3-prong) used.

***Please take note, 3 wire AC power cord not included.

Model: ADP-90SB BB
Acer P/N: AP.09001.002(AP09001002), AP.09001.003 (AP09001003), AP.09001.004 (AP09001004), AP.09001.005 (AP09001005), AP.09001.010 (AP09001010), AP.09001.012 (AP09001012), AP.09001.013 (AP09001013)

INPUT: 100-240V~ 1.5A, 50-60Hz
OUTPUT: 19V 4.74A 90W
Connecter size: Int. Diameter: 1.70mm
                       Ext. Diameter: 5.50mm

Dimensions: 130 x 55 x 30 mm

*Please do not mix up with another adapter with the same model number but different connector size, please check carefully the connector's measurement  of your adapter.

**When buying any compatible AC adapter, please take note the type of power cord(2 or 3-prong) used.

***Please take note, 3 wire AC power cord not included.
