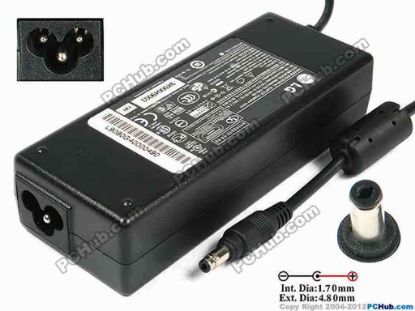

LITE-ON PA-1900-04 AC Adapter- Laptop 19V 4.74A, 4.8/1.7mm, 3-Prong

By LITEON
AC Adapter Model: PA-1900-08R1
Series PPP012L-S
HP Part No.: 393954-001

AC Adapter Model: PA-1900-18H1
Series: PPP014L-S
HP Part No.: 374473-001

By HIPRO
AC Adapter Model: HP-AP091F13P LF
Series PPP012H-S
HP Part No.: 393954-002

AC Adapter Model: HP-AP091F13P
Series PPP012H-S
HP Part No.: 374473-002

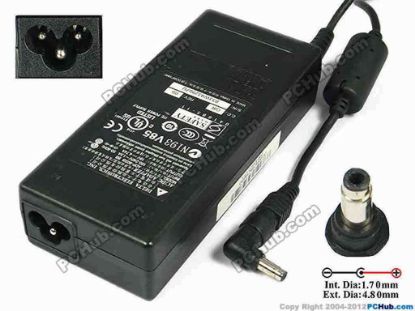

By DELTA
AC Adapter Model: ADP-90GH B
Series PPP012D-S
HP Part No.: 393954-004

Replace with HP Spare: 397224-001, 374791
Compatible HP Spare:  393954-001, 403900-001, 408488-001, 409515-001, 412267, 432309-001

* PLEASE NOTE : 408488-001 has been replaced by 432309-001 *

INPUT: 100-240V~ 1.5A, 50-60Hz
OUTPUT: 19V 4.74A 90W Max.
Connecter size: Int. Diameter: 1.70mm
                             Ext. Diameter: 4.80mm

Dimension: 125 x 49 x 30 mm

*For use with Compaq and HP notebook products only.

*Please take note, 3 wire AC power cord not included.



By LITEON
AC Adapter Model: PA-1900-08R1
Series PPP012L-S
HP Part No.: 393954-001

AC Adapter Model: PA-1900-18H1
Series: PPP014L-S
HP Part No.: 374473-001

AC Adapter Model: PA-1900-18R1
Series: PPP014L-S
HP Part No.: 393955-001

By HIPRO
AC Adapter Model: HP-AP091F13P LF
Series PPP012H-S
HP Part No.: 393954-002

AC Adapter Model: HP-AP091F13P
Series PPP012H-S
HP Part No.: 374473-002

By DELTA
AC Adapter Model: ADP-90GH B
Series PPP012D-S
HP Part No.: 393954-004

Replace with HP Spare: 397224-001, 374791-001
Compatible HP Spare:  393954-001, 403900-001, 408488-001, 409515-001, 412267, 432309-001

* PLEASE NOTE : 408488-001 has been replaced by 432309-001 *

INPUT: 100-240V~ 1.5A, 50-60Hz
OUTPUT: 19V 4.74A 90W Max.
Connecter size: Int. Diameter: 1.70mm
                             Ext. Diameter: 4.80mm

Dimension: 125 x 49 x 30 mm

*For use with Compaq and HP notebook products only.

*Please take note, 3 wire AC power cord not included.

Testing Method.
With electronic load device, consumed the maximum ampere for 4 hours. There was no sign of voltage dropping. This is in-line with the Industrial-wide testing process for quality- Time of test 4 to 8 hours.

SPECIFICATION:

• Power range: 90W Max
• RoHS and WEEE Compliance
• With LED Indication
• IEC320 C6 ( 3-PIN)
• Dimensions: 132(L) x 58.5(W) x 30(H) mm
• Weight: 350g
• Connector Spec: 4.75 x 1.70 x 10.00mm (Internal Diameter x External Diameter x Length)

*Please take note, 3 wire AC power cord not included.
