Sony Vaio Parts AC Adapter- Laptop VGP-AC19V24, 19.5V 4.7A, Tip E

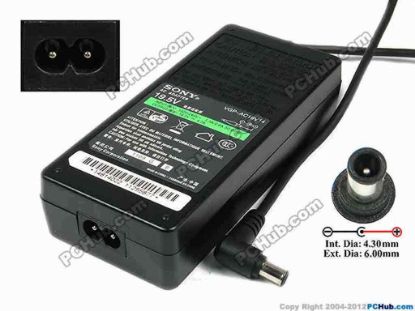

Model: VGP-AC19V26
SONY P/N: 148013221, 1-480-132-21
P/N: ADP-90TH B

INPUT: 100-240V~ 1.5A, 50-60Hz
OUTPUT: 19.5V 4.7A 90W
Connecter size: Int. Diameter: 4.30mm
                       Ext. Diameter: 6.00mm
                       Length:         : 9.00mm
                       1.4 mm Pin in the Middle

Dimensions: 121.5 x 49.5 x 30.2 mm

*For with Sony Vaio BZ, CS, FW, NS, SR, Z series.

*Please take note, 3 wire AC power cord not included.

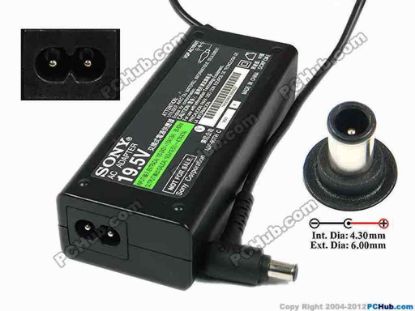

Model: PCGA-AC19V10
Delta Electronics P/N: ADP-90YB
Sony P/N: 147911451

INPUT: 100-240V~ 1.3A, 50-60Hz
OUTPUT: 19.5V 4.7A 90W
Connecter size: Int. Diameter: 4.30mm
                       Ext. Diameter: 6.00mm
                       Length:         : 9.00mm
                       1.4 mm Pin in the Middle

Dimension: 139 x 63 x 30 mm

*Please take note, 2 wire AC power cord not included.

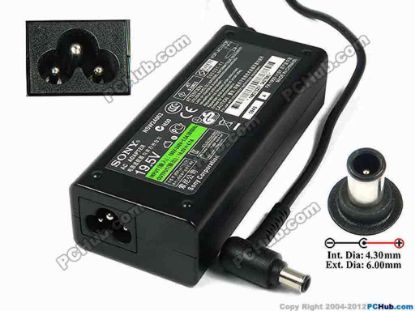

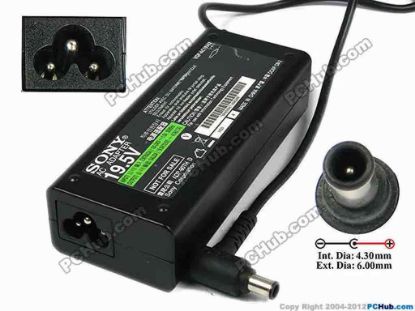

Model: PCGA-AC19V13
Sony P/N: 147968111

INPUT: 100-240V~ 1.3A~1.3A, 50-60Hz
OUTPUT: 19.5V 4.7A 90W
Connecter size: Int. Diameter: 4.30mm
                       Ext. Diameter: 6.00mm
                       Length:         : 9.00mm
                       1.4 mm Pin in the Middle

Dimension: 139 x 63 x 30 mm

*Please take note, 2 wire AC power cord not included.
