Toshiba

Toshiba P/N: PA3201U-1ACA, PA3215U-1ACA, PA3283U-1ACA, PA3283U-2ACA, PA3283U-3ACA, PA3283U-5ACA and PA3469U-1ACA
Delta Model: SADP-75PB A , Acbel Model: API4AD19, Lite ON Model: PA-1750-07

Input: 100V-240V~ 1.5A, 100V-240V~ 2A,  50-60Hz
Output: 15V 5A 75W
Connecter size: Int. Diameter: 3.00mm
                       Ext. Diameter: 6.50mm
                       Length          : 9.00mm

Dimensions: 126 x 48 x 30 mm

*Note: All the above mention Toshiba Part number have the same specification, however the adapter may not look similar due to different manufacturer.

*When buying any compatible AC adapter, please take note the type of power cord(2 or 3-prong) used.

*Please take note, 2 wire AC power cord not included.

Toshiba AC Adapter Model: PA2521U-2AC3
Delta Electronics Model: ADP-90NB B

Input : 100-240V~ 1.5A, 50-60Hz
Output : 15V 6A 90W
Connecter size: Int. Diameter: 3.00mm
                       Ext. Diameter: 6.50mm
                       Length           : 9.00mm

Dimensions: 147 x 56 x 33 mm

*When buying any compatible AC adapter, please take note the type of power cord(2 or 3-prong) used.

*Please take note, 3 wire AC power cord not included.

*For some Satellite A100, M100, M115 & P100 model only.

AC Adapter Model: PA3237U-1ACA, PA3237U-2ACA, PA3237U-3ACA, PA3507U-1ACA
G71C0002R310, G71C0002R410, G71C0002R510, G71C0002R610, G71C0002R710
Model: ADP-120YB AAF

INPUT: 100-240V~ 1.7-0.75A, 50-60Hz
OUTPUT: 15V 8A, 120W
Connector: 4 Hole ( For 4-pin)

Dimension: 140 x 63 x 38 mm

*When buying any compatible AC adapter, please take note the type of power cord(2 or 3-prong) used.

*Please take note, 2 wire AC power cord not included.

Toshiba P/N: PA3467U-1ACA, PA3396U-1ACA, PA3396E-1ACA
Delta Electronics Model: SADP-65KB A , SADP-65KB C
LITE-ON P/N: PA-1650-01
AcBel Model: API3AD03
P/N: PK100008I00 , PK100009C00

INPUT: 100-240V~ 1.5A, 50-60Hz
OUTPUT: 19V 3.42A 65W
Connecter size: Int. Diameter:  2.50mm
                       Ext. Diameter:  5.50mm
                       Length          : 12.00mm

Dimensions: 107 x 45 x 30 mm

*Note: All the above mention Toshiba Part number have the same specification, however the adapter may not look similar due to different manufacturer.

*When buying any compatible AC adapter, please take note the type of power cord(2 or 3-prong) used.

**Please take note, 2 wire AC power cordnot included.

Toshiba P/N: PA3467E-1AC3
Model: PA-1650-02 or API3AD02 or SADP-65KB B

INPUT: 100-240V~ 1.5A, 50-60Hz
OUTPUT: 19V 3.42A 65W
Connecter size: Int. Diameter:  2.50mm
                       Ext. Diameter:  5.50mm
                       Length          : 12.00mm

Dimension: 107 x 45 x 30 mm

*When buying any compatible AC adapter, please take note the type of power cord(2 or 3-prong) used.

**Please take note, 3 wire AC power cord not included.

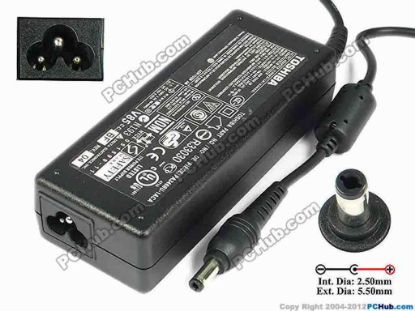

AC Adapter Model: PA3468U-1ACA

LITE-ON Model: PA-1750-04
Delta Electronics Model: ADP-75SB AB
AcBel Model: API4AD32
P/N: 6032B0007601 , PK100009E00
Compatible Toshiba P/N: PA3468E-1ACA, PA3432E-1ACA, PA3432U-1ACA

Input: 100V-240V~ 1.3A, 50-60Hz
Output: 19V 3.95A 75W
Connecter size: Int. Diameter:  2.50mm
                       Ext. Diameter:  5.50mm
                       Length          : 11.00mm

Dimensions: 126 x 48 x 30 mm

*Note: All the above mention Toshiba Part number have the same specification, however the adapter may not look similar due to different manufacturer.

*When buying any compatible AC adapter, please take note the type of power cord(2 or 3-prong) used.

**Please take note, 2 wire AC power cord not included.

 *For some Satellite A100 model only.

Model: ADP-120ZB B

INPUT: 100-240V~ 2.0A, 50-60Hz
OUTPUT: 19V 6.3A 120W
Connecter size: Int. Diameter: 2.50mm
Ext. Diameter: 5.50mm
Length : 12.00mm

Dimensions: 148 x 63 x 35 mm

*Please do not mix up with another adapter with the same model number but different connector size, please check carefully the connector's measurement of your adapter.

*When buying any compatible AC adapter, please take note the type of power cord(2 or 3-prong) used.

*Please take note, 3 wire AC power cord not included.
