UPH

UPH Connector Connector- Wafer SMT

Material:
Housing: Resin Nylon
Pin: brass, tin-plated



• Number of Rows: 1
• Number of Pins: 2
• Pitch - Mating Interface 1.0mm
• Pitch - Termination Interface 1.0mm
• Temperature Range - Operating -20°C to +85°C
• Flammability 94V-0



Quantity:
Female Connectors consist:

• 1001-T: 20 x Male Crimp Terminal Pin (1.0)
• 1001-H: 10 x Plug Housing

Total 30 pieces of Terminals and Hosings to form the 10 pieces plugs

UPH Connector Connector- Wafer SMT

Material:
Housing: Resin Nylon
Pin: brass, tin-plated



• Number of Rows: 1
• Number of Pins: 3
• Pitch - Mating Interface 1.0mm
• Pitch - Termination Interface 1.0mm
• Temperature Range - Operating -20°C to +85°C
• Flammability 94V-0



Quantity:
Female Connectors consist:

• 1001-T: 30 x Male Crimp Terminal Pin (1.0)
• 1001-H: 10 x Plug Housing

Total 40 pieces of Terminals and Hosings to form the 10 pieces plugs

UPH Connector Connector- Wafer SMT

Material:
Housing: Resin Nylon
Pin: brass, tin-plated



• Number of Rows: 1
• Number of Pins: 4
• Pitch - Mating Interface 1.0mm
• Pitch - Termination Interface 1.0mm
• Temperature Range - Operating -20°C to +85°C
• Flammability 94V-0



Quantity:
Female Connectors consist:

• 1001-T: 40 x Male Crimp Terminal Pin (1.0)
• 1001-H: 10 x Plug Housing

Total 50 pieces of Terminals and Hosings to form the 10 pieces plugs

UPH Connector Various Item Server the fan extension cords with alarm function
When the fan is not turning, it will beep

UPH Connector Various Item

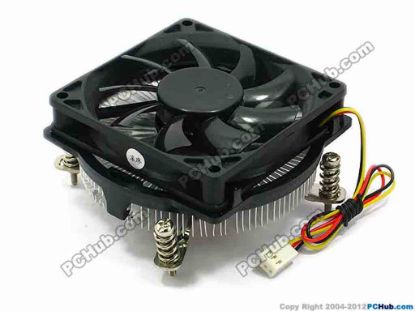

UPH Cooler Cooler- CPU Fan

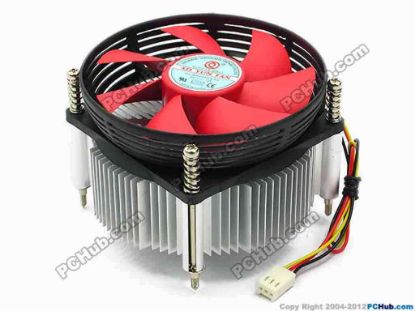

UPH Cooler Cooler- CPU Fan

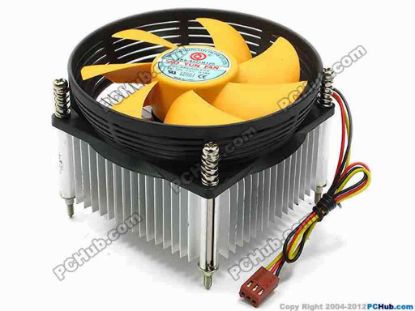

UPH Cooler Cooler- CPU Fan

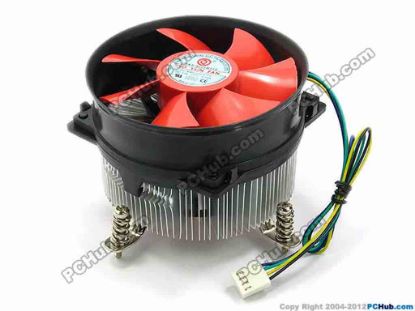

UPH Cooler Cooler- CPU Fan

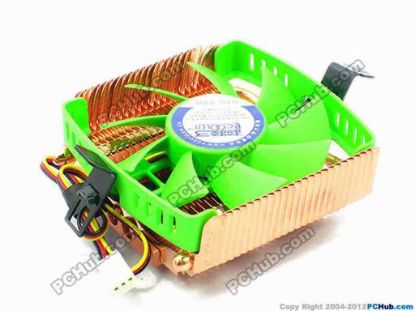

UPH Cooler Cooler- CPU Fan Specifications:
Dimensions(mm)                    112(L)x110(W)x57(H)
Weight                                231g
Rated Voltage                      12V DC
Rated Current                       0.25 Amp
Air Flow                               42.7CFM
Speed                                 2,200RPM±10%
Noise                                  20dBA±10%
Bearing                                Hydraumatic

Compatible:                              CPU Compatible
Intel LGA775                         Core 2 DUO/Celeron/Pentium 4/Pentium D
Intel LGA1155/1156                Core i3/i5/i7
AMD 754/AM2/AM2+/AM3        Sempron/Athlon 64/Athlon x2/Phenom 64

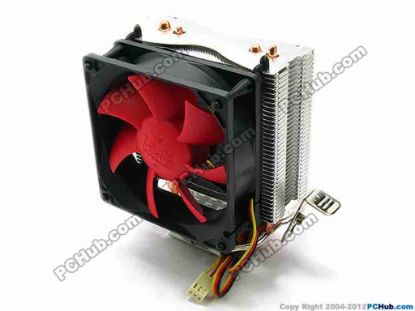

UPH Cooler Cooler- CPU Fan Specifications:
Dimensions(mm)                     113(L)x80(W)x113(H)
Weight                                 304g
Bearing Type                         Hydraumatic
Rated Voltage                       12V DC
Rated Current                        0.18±0.02Amp
Air Flow                                35CFM
Speed                                  2.200RPM±10%
Noise                                   20dB±10%
Life                                      30,000hours
Thermal Resistance                 0.18('C/W)

Compatible:                               CPU Compatible
Intel LGA775                          Core 2 DUO/Celeron/Pentium 4/Pentium D
Intel LGA1155/1156                 Core i3/i5/i7
AMD AM2/AM2+/AM3               Sempron/Athlon 64/Athlon x2/Phenom 64

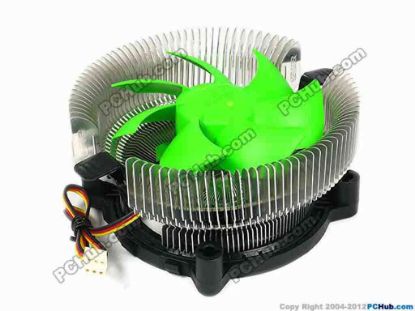

UPH Cooler Cooler- CPU Fan Specifications:
Dimensions(mm)          113(L)x82(W)x34(H)
Weight                         220g
Bearing Type                Hydraumatic
Rated Voltage               12V DC
Rated Current               0.18±0.02A
Air Flow                        36.7CFM
Noise                           28dB±10%
Speed                          2,500RPM±10%
Life                              30,000hours

Compatible:                        CPU                                Compatible
Intel LGA775                       Core 2 DUO/Celeron/Pentium 4/Pentium D
Intel LGA1156                     Core i3/i5/i7
AMD 754/AM2/AM2+/AM3    Sempron/Athlon 64/Athlon x2/Phenom 64
