Digitally tests the connectivity and power voltage coming out from various vital PC power connectors

• Tests ATX power supply connector from PSU, regular HDD/DVD power connector, and SATA power connectors
• Displays results via the on-unit LED
• Fully support testing: Floppy, HDD, CDROM, SATA, 4 pin (P4), 8 pin (Dual-CPU), 6 pin

Specificatio & Feature

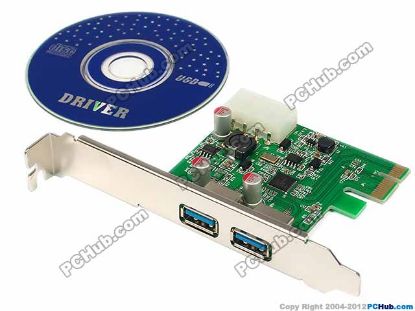

• 1-Lane (x1) PCI-Express with transfer rate 2.5Gb/s full duplex channel
• PCI Express x1 interface , compatible with PCI Express x1, x4, x8, x16 slots.
• Supports USB3.0 devices while being fully backward-compatible with USB 2.0 & USB1.1 devices
• Support devices hot swap and wake-up
• A new major feature is the SuperSpeed bus, which provides a fourth transfer mode at 5 Gbit/s
• 2 External USB3.0 ports
• Supports external power socket in order to supplying power for each USB3.0 Connector up to 900Ma Max/port
• Compliant with USB3.0 specification Revision1.0
• Supports Low-speed(1.5Mbps)/Full-speed(12Mbps)/High-speed(480Mbps)/Supper-speed(5Gbps)
• Supports 2 downstream prots for all speeds
• Supports all USB compliant data transfer type as follows:Controls/Bulk/Interrupt/Isochronous transfer
• Support Windows XP ,Vista and Windows 7

Digitally tests the connectivity and power voltage coming out from various vital PC power connectors

• Tests ATX power supply connector from PSU, regular HDD/DVD power connector, and SATA power connectors
• Displays results via the on-unit 1.8" LCD screen
• Full support list: ATX 24P/20P/8P/6P/4P/Floppy/SATA/HDD
• Test voltage: +3.3V.-12.+5VSB, +12V1, +12V2, +5V

This Diagnostic card diagnose and analy the mother board,CPU and VGA card.
This card is also called POST( Power on self test ) Card.
No need software.

• Run the tester and refer the number code (result of Post) to the error code table in the User Guide for the fault the code indicates.
• Especially when the PC can't boot operating system, or blank screen, or the card and motherboard couldn't issue an audible beep.
